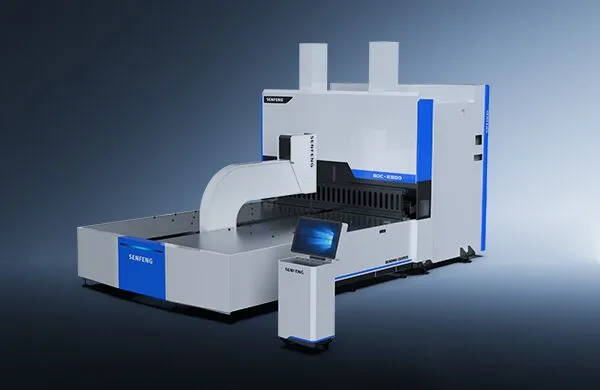

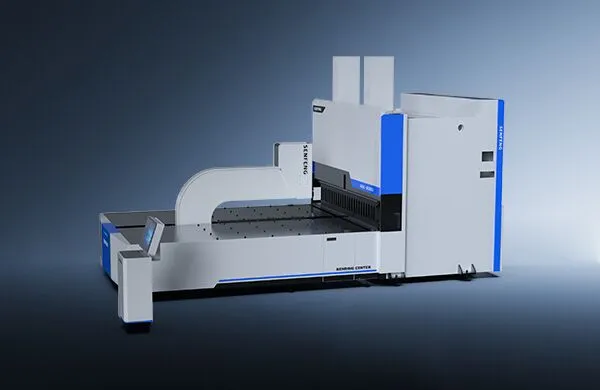

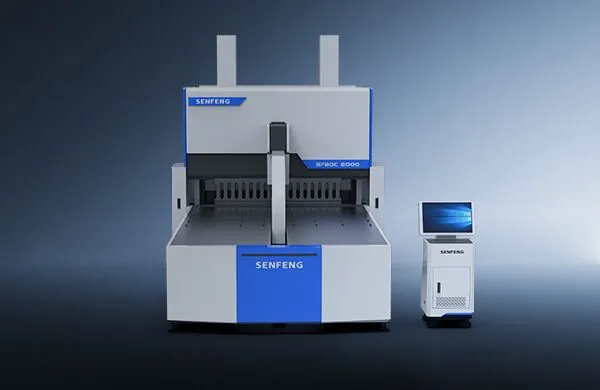

Press-down Arm Panel Bender Machine
3200 [mm] Max bending length
1250 [mm] Max bending width
200/300 [mm] Max bending height

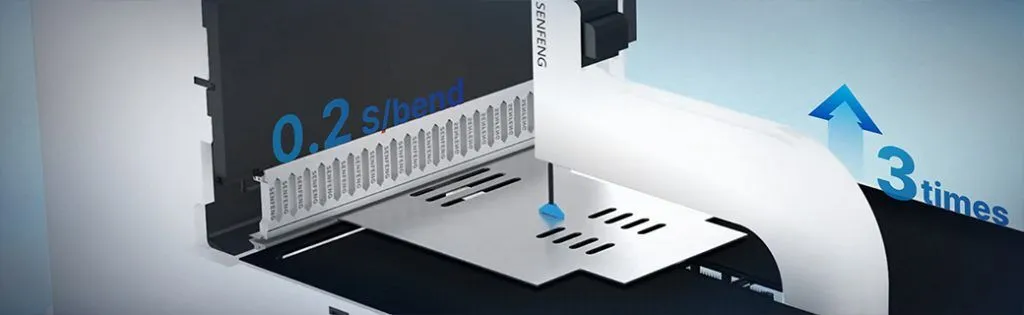

0.2 [S/bend] Max bending speed
Technical Parameters
| Main Parameters | Model | |||
| BDC1500 | BDC2000 | BDC2500 | BDC3200 | |
| Max Bending Speed (S/bend) | 0.2 | 0.2 | 0.2 | 0.2 |
| Max Bending Length (mm) | 1500 | 2000 | 2500 | 3200 |
| Bending Height (mm) | 200/300 (optional) | 200/300 (optional) | 200/300 (optional) | 200/300 (optional) |
| Max Bending Thickness (mm) | 304 stainless steel: 1.5 cold plate: 2.0 AL sheet: 2.5 |
304 stainless steel: 1.5 cold plate: 2.0 AL sheet: 2.5 |
304 stainless steel: 1.5 cold plate: 2.0 AL sheet: 2.5 |
304 stainless steel: 1.5 cold plate: 2.0 AL sheet: 2.5 |
| Min Bending Thickness (mm) | 0.35 | 0.35 | 0.35 | 0.35 |
| Max Bending Size (L*W, mm) | 1500*1250 | 2000*1250 | 2500*1250 | 3200*1250 |
| Number of Axes | 13-axis concurrent linkage | 13-axis concurrent linkage | 13-axis concurrent linkage | 16-axis concurrent linkage |
| Rated Voltage (V) | 380 | 380 | 380 | 380 |
| Total Motor Power (KW) | 34.2 | 36.5 | 65 | 80 |
| Overall Dimensions (L*W*H, mm) | 4400*2000*2750 | 5000*2700*2950 | 5700*3200*3050 | 6600*4000*3280 |
| Gross Mass (T) | 13 | 17 | 22 | 25 |
Competitive Strengths
⇲ Unique design
* Its machine tool bed is designed as triangular and of which some key components are made of 80mm steel plates in order to keep itself stable even under high-tonnage impact
* Its press-down arm uses upper and lower grippers to clamp workpieces even when there are pores, dents or they are in complex shapes. In a word, such feeding mode has low demanding on the quality of sheet surface
* Its universal bending tools are made of high-strength alloy/die steel and have got through dozens of procedures including solid forging, tempering and quenching in order to bend for millions of times.
⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment

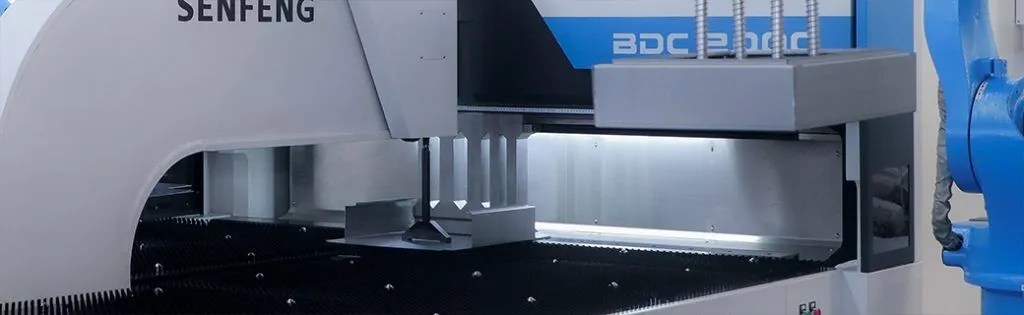

⇲ Universal bending tools
Bend up & down, arc, dead-edge, U-shaped, enclosed-type bending, bend in right, acute and obtuse angle, as well as other complex shapes
⇲ Other auxiliary devices
Work with auxiliary knife and automatic tool changer to cope with other demanding tasks, make itself more flexible and enlarge its work scope
⇲ Unique design
* Its machine tool bed is designed as triangular and of which some key components are made of 80mm steel plates in order to keep itself stable even under high-tonnage impact
* Its press-down arm uses upper and lower grippers to clamp workpieces even when there are pores, dents or they are in complex shapes. In a word, such feeding mode has low demanding on the quality of sheet surface
* Its universal bending tools are made of high-strength alloy/die steel and have got through dozens of procedures including solid forging, tempering and quenching in order to bend for millions of times.
⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
⇲ Universal bending tools
Bend up & down, arc, dead-edge, U-shaped, enclosed-type bending, bend in right, acute and obtuse angle, as well as other complex shapes
⇲ Other auxiliary devices
Work with auxiliary knife and automatic tool changer to cope with other demanding tasks, make itself more flexible and enlarge its work scope
⇲ 13-axis concurrent linkage
Perform more complex bending actions such as bend workpieces of different sizes
⇲ Visual graphical programming
Only need to input bending data, then, bending instructions will be generated, with lower demands on workers
⇲ Self-diagnosis
Reduce maintenance costs, prevent unexpected shutdown and make it more reliable

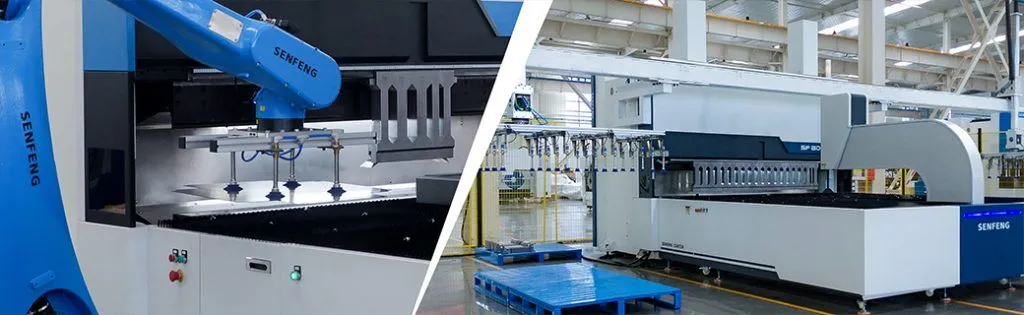

⇲ Intelligent interconnection
Reserve robot/truss expansion interface for loading & unloading, so as to make bending, loading & unloading fully automatic.
