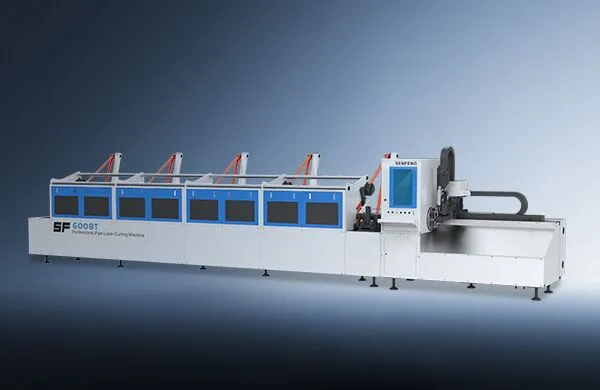

Single-chuck Tube Laser for Small Tubes SF6008T
1.5-3 [kW] Laser power
6200 [mm] Max length of tube
16-80 [mm] Tube size
80 [kg] Max weight of tube
Technical Parameters
| Main Parameters | Model |
| SF6008T | |
| Laser Power (kW) | 1.5-3 |
| Max Length of Tube (mm) | 6200 |
| Scope of Tube Size (mm) | Round tube: Φ16~80 Square or rectangular tube: 16≤diagonal line≤80 |
| Max Weight of Tube (kg) | 80 |
| X/Y-axis Positioning Accuracy (mm) | ±0.05/1000 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.03/1000 |
| Max No-load Speed (m/min) | 100 |
| Max Rotating Speed of Chucks (r/min) | 150 |
| Overall Dimensions (L*W*H, mm) | 9600*1200*1800 |
| Power Supply | Three-phase 380V, 50Hz/60Hz |

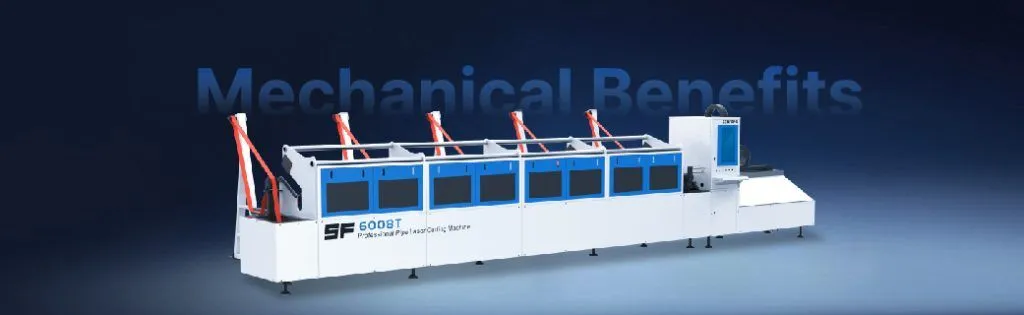

Competitive Strengths
⇲ Simple design
Semi-enclosed structure at high level of integration
Ultra-high-speed single chuck for 50mm tailing at minimum
Pipe-welded machine tool, to improve its stability
⇲ Efficient drive system
We use integrated electronic components & precision guide rail and racks (100% match) to enable high acceleration (1.5G) and positioning accuracy (±0.03/1000mm).
⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
⇲ Simple design
Semi-enclosed structure at high level of integration
Ultra-high-speed single chuck for 50mm tailing at minimum
Pipe-welded machine tool, to improve its stability
⇲ Efficient drive system
We use integrated electronic components & precision guide rail and racks (100% match) to enable high acceleration (1.5G) and positioning accuracy (±0.03/1000mm).
⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment

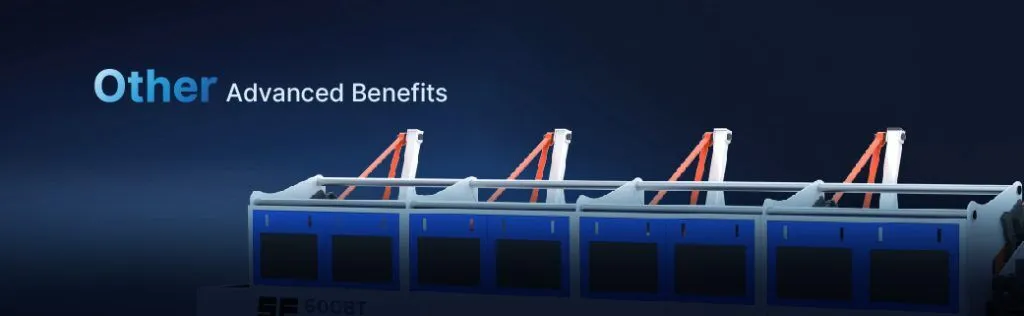

⇲ Kerf compensation
Reduce deviation between actual size and its theoretical size, up to users’ requirements
⇲ Automatic edge/center searching
No need for manual correction and enhance cutting efficiency
⇲ Innovative loading device
Users only need to put batch pipes in storage area, then, it will pull tubes for loading as a whole in a fully-automatic manner.
