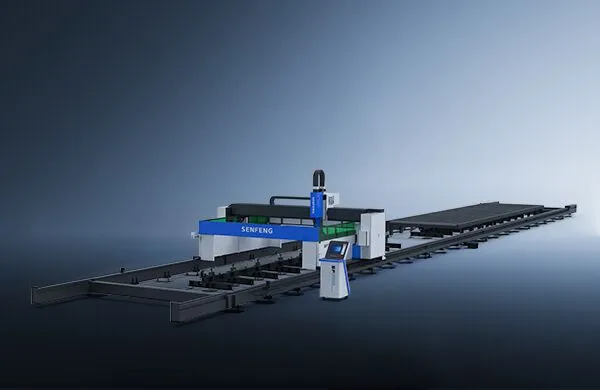

Heavy-duty H Beam Laser Cutting Machine SF1500CH
12-30 [kW] Laser power
28000*3000 [mm] Working area
35-50 [mm] Max sheet thickness
50 [m/min] Max no-load speed
Technical Parameters
| Main Parameters | Model |
| SF1500CH | |
| Laser Power (kW) | 12-30 |
| Working Area (L*W, mm) | 28000*3000 |
| Max width of H beam (web, mm) | 1200 |
| Max height of H beam (flange slab, mm) | 500 |
| Max thickness | ≤50mm (straight cutting) ≤35mm (flange slab beveling) |
| X/Y-axis Positioning Accuracy (mm) | ±0.1 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.05 |
| Max No-load Speed (m/min) | 50 |
| Overall Dimensions (L*W*H, mm) | 35670*5900*3030 |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
Competitive Strengths

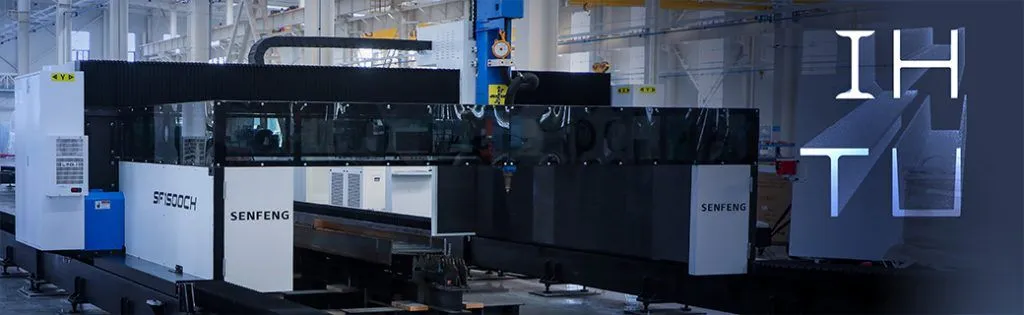

⇲ Efficient drive system
We use multi-axis linkage, precision reducer, rack and pinion drive to get 2G Z-axis acceleration and ±0.05mm repositioning accuracy

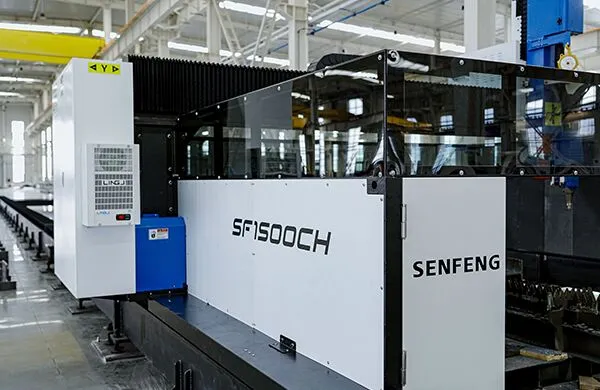

⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment

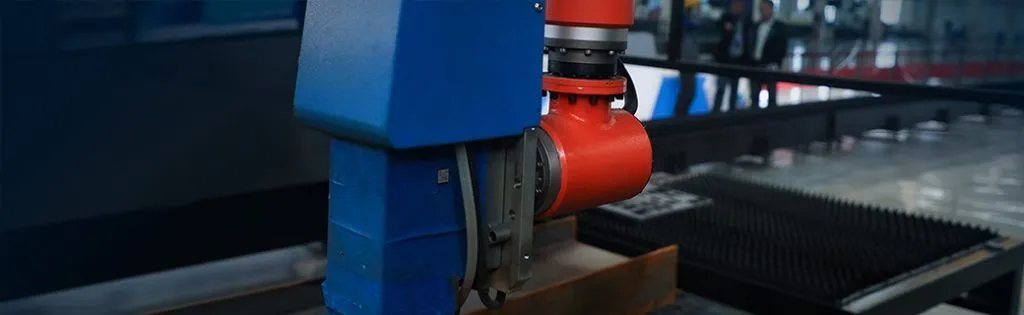

⇲ Efficient drive system
We use multi-axis linkage, precision reducer, rack and pinion drive to get 2G Z-axis acceleration and ±0.05mm repositioning accuracy

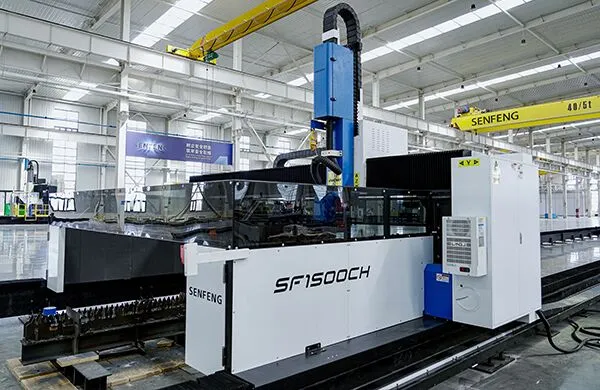

⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
CNC system special for H beam is easy to install and operate. Users can change technical parameters on its visual operating interface. In addition to its compatibility with all Tekla architecture software, further upgrade of function is also available.
⇲ Sheet profile detection
Automatch with deformed workpiece to ensure high precision
⇲ Content-rich cutting database
Store and invoke cutting data at will
⇲ Automatic nesting
No manual intervention, make full use of raw materials
⇲ H beam supporting table
2 tables in total, one for cutting and the other for loading & unloading (two 12m long H beam in the meantime)
⇲ Sheet cutting table
2 tables in total, one for cutting and the other for loading & unloading (multiple sheets within working area in the meantime)
⇲ H beam+sheet cutting table
One for cutting H beam and the other for cutting sheets by turns, with no mutual interference
