12m Tube Laser Cutter with Four Chucks SF12050HT
6-20 [kW] Laser power
12000 [mm] Max length of tube
50-500 [mm] Tube size
2000 [kg] Max weight of tube
Technical Parameters
| Main Parameters | Model |
| SF12050HT | |
| Laser Power (kW) | 6-20 |
| Max Length of Tube (mm) | 12000 |
| Scope of Tube Size (mm) | Φ50-500 □50*50~500*500 |
| Max Weight of Tube (kg) | 2000 |
| X/Y-axis Positioning Accuracy (mm) | ±0.1/10000 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.05 |
| Max No-load Speed (m/min) | 40 |
| Max Rotating Speed of Chucks (r/min) | 40 |
| Overall Dimensions (L*W*H, mm) | 29000*7200*4150 |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
Competitive Strengths

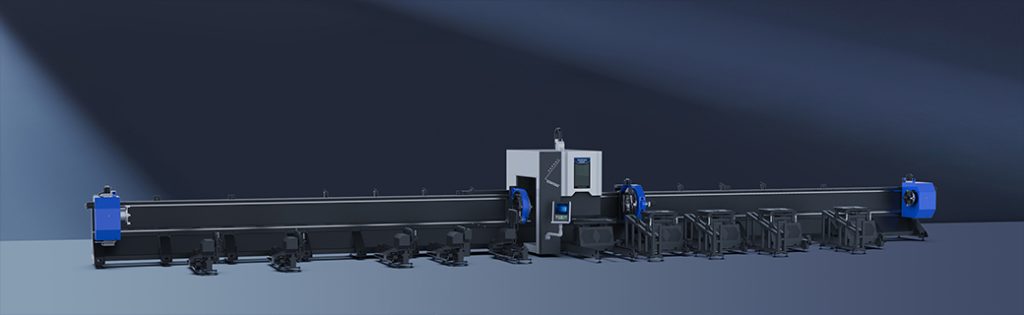

⇲ Tried-and-tested design
Highly integrated machine body
Four heavy-duty chucks to enable cutting of 12000mm long tube as a whole, with 0 tailing
All-optical cutting head with autofocus and auto obstacle avoidance
Side-attached triangular machine tool, featuring heavy loads and high stability. Its modular structure facilitates later partial replacement
Follow-up support available to protect cutting precision from tube sagging
⇲ Efficient drive system
We use integrated electronic components & precision guide rail and racks (100% match) to enable high positioning accuracy (±0.05mm)
⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
⇲ Tried-and-tested design
Highly integrated machine body
Four heavy-duty chucks to enable cutting of 12000mm long tube as a whole, with 0 tailing
All-optical cutting head with autofocus and auto obstacle avoidance
Side-attached triangular machine tool, featuring heavy loads and high stability. Its modular structure facilitates later partial replacement
Follow-up support available to protect cutting precision from tube sagging
⇲ Efficient drive system
We use integrated electronic components & precision guide rail and racks (100% match) to enable high positioning accuracy (±0.05mm)
⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
The bus-based CNC system, with simple interface, is easy to operate and learn because of its high degree of intelligence. It can also support files in igs, sat, jhb and other formats.
⇲ Automatic nesting
Raise tube utilization rate and save raw materials to the utmost
⇲ Secondary cutting path editing
Make high-quality cutting of special-shaped steels possible
⇲ Real-time deviation compensation
Lower demands on tube quality and raise piercing precision sharply
⇲ ±45°beveling (optional)
Cut tubes into X, Y, V-shaped bevels for easy subsequent welding
⇲ Automatic loading & unloading devices
Load multiple tubes synchronously and unload long tube up to 12000mm. The servo-controlled devices help to protect tube surface well
