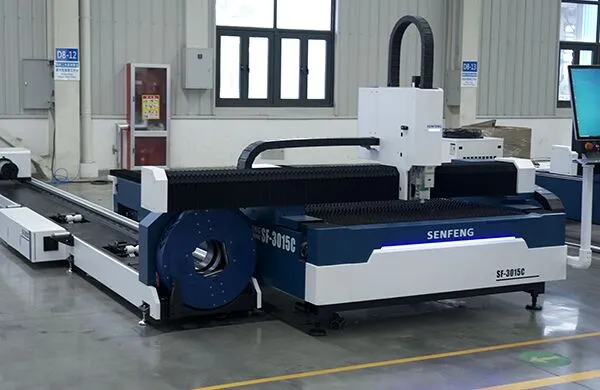

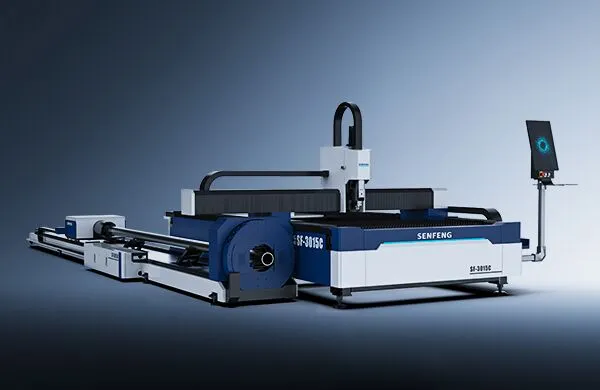

Open Type Sheet and Tube Combo
1.5-6 [kW] Laser power
3050*1530-6050*2030 [mm] Sheet size
20~220 [mm] Scope of tube size
2000 [kg] Max load of sheet platform
Technical Parameters
| Main Parameters | Model | ||||
| SF3015C | SF4015C | SF4020C | SF6015C | SF6020C | |
| Laser Power (kW) | 1.5-6 | 1.5-6 | 1.5-6 | 1.5-6 | 1.5-6 |
| Working Area (L*W, mm) | 3050*1530 | 4050*1530 | 4050*2030 | 6050*1530 | 6050*2030 |
| X/Y-axis Positioning Accuracy (mm) | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Max No-load Speed (m/min) | 100 | 100 | 100 | 100 | 100 |
| Diameter of Round Tube (mm) | 20-220 | 20-220 | 20-220 | 20-220 | 20-220 |
| Tube Length (mm) | 500-6000 | 500-6000 | 500-6000 | 500-6000 | 500-6000 |
| Max Load of Platform (kg) | 700 | 950 | 1250 | 1400 | 2000 |
| Overall Dimensions (L*W*H, mm) | 8500*3740*2100 | 8500*3740*2100 | 8600*4200*2100 | 8800*3740*2100 | 8800*4200*2100 |
| Power Supply | Three-phase 380V, 50Hz/60Hz | ||||
Competitive Strengths

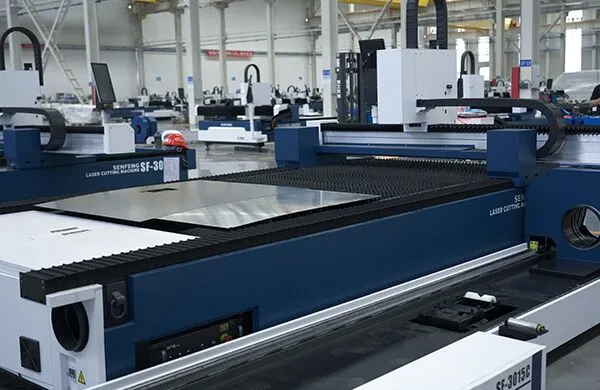

⇲ Compact in structure
* In the absence of top cover and four-directional baffles, users can load and unload from front, rear and both sides at will
* With open-style structure, operators are crystal clear to whole work process to deal with emergencies and avoid needless downtime
* Aim at cutting thin sheet (≤20mm) and relatively small tube. Simply designed, but high in cost performance in spite of single platform
⇲ Three self-developed core components
We develop our own SF-Mimir LT intelligent CNC system, SF-PowerPlus laser generator and SF-TYRFING laser cutting head. This highly matched suit features fast response, high interconnection, low failure rate and easy maintenance.
⇲ Aviation-grade AL beam
Light in weight and small in inertia, standing out in dynamic performance. The max no-load speed and acceleration reach up to 100m/min and 1G respectively
⇲ Firm in structure for long service life
* This semi-hollow machine tool is internally unconnected to cut off heat transfer and any effect on cutting precision
* Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
⇲ Compact in structure
* In the absence of top cover and four-directional baffles, users can load and unload from front, rear and both sides at will
* With open-style structure, operators are crystal clear to whole work process to deal with emergencies and avoid needless downtime
* Aim at cutting thin sheet (≤20mm) and relatively small tube. Simply designed, but high in cost performance in spite of single platform
⇲ Three self-developed core components
We develop our own SF-Mimir LT intelligent CNC system, SF-PowerPlus laser generator and SF-TYRFING laser cutting head. This highly matched suit features fast response, high interconnection, low failure rate and easy maintenance.
⇲ Aviation-grade AL beam
Light in weight and small in inertia, standing out in dynamic performance. The max no-load speed and acceleration reach up to 100m/min and 1G respectively
⇲ Firm in structure for long service life
* This semi-hollow machine tool is internally unconnected to cut off heat transfer and any effect on cutting precision
* Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
⇲ Lightning-fast piercing
Pierce at top speed and enhance efficiency especially when cutting medium-thin sheet
⇲ Disc centering
Click one key to locate disc center for higher cutting precision
⇲ One-key fly cutting
Cut into various shapes at rapid speed
⇲ Servo robot arm for loading
Made of CNC system, robot arm, vacuum suction cups and material rack for automatic loading
