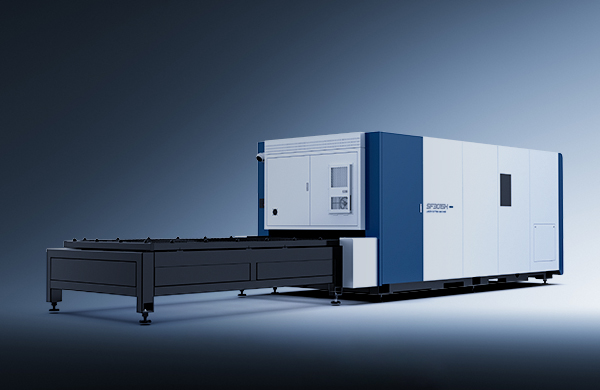

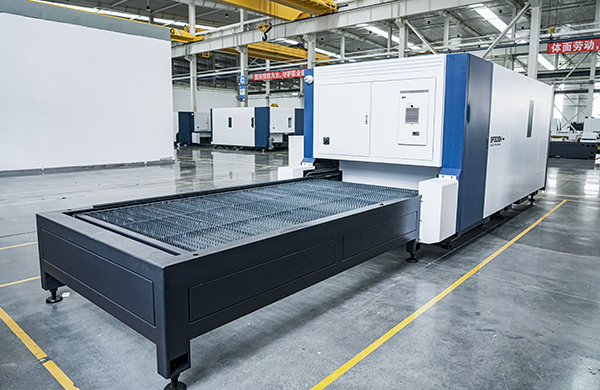

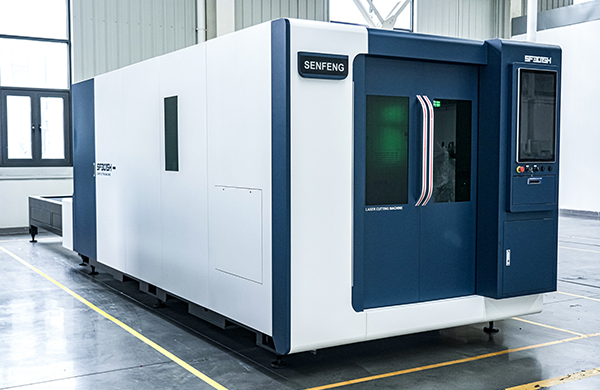

1.5kW-12kW Metal Sheet Fiber Laser Cutter
1.5-12 [kW] Laser power
3050*1530 [mm] Max sheet size
130 [m/min] Max no-load speed
700 [kg] Max load of platforms
Technical Parameters
| Main Parameters | Model |
| 3015H | |
| Laser Power (kW) | 1.5-12 |
| Working Area (L*W, mm) | 3050*1530 |
| X/Y-axis Positioning Accuracy (mm) | ±0.05 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.02 |
| Max No-load Speed (m/min) | 130 |
| Max Load of Platforms (kg) | 700 |
| Overall Dimensions (L*W*H, mm) | 8520*2270*2180 |
| Power Supply | Three-phase 380V, 50Hz/60Hz |
Competitive Strengths
⇲ Tried-and-tested design
Cover a small area (only 19m2) for high utility rate of space
Adopt hollow machine tool, further thickened tool bits and graphene/red copper as fire prevention
Allow for free-smoke cutting because of intelligent spiral negative-pressure dust removal system
⇲ Efficient drive system
We use integrated electronic components & precision guide rail and racks (100% match) to enable high acceleration (1.2G) and positioning accuracy (±0.05mm).
⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like 600° high annealing
⇲ Tried-and-tested design
Cover a small area (only 19m2) for high utility rate of space
Adopt hollow machine tool, further thickened tool bits and graphene/red copper as fire prevention
Allow for free-smoke cutting because of intelligent spiral negative-pressure dust removal system
⇲ Efficient drive system
We use integrated electronic components & precision guide rail and racks (100% match) to enable high acceleration (1.2G) and positioning accuracy (±0.05mm).
⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like 600° high annealing
This professional CNC system is internally installed with many functions, so as to lower failure rate and allow for easy use & maintenance.
⇲ Deslag piercing
Make piercing surface smoother and more pleasing
⇲ Self-adjust vibration suppression
Protect cutting precision from thin sheet vibration
⇲ Smooth micro-joint
Easy to detach the cutting workpiece and make its unloading much safer
⇲ Servo robot arm for loading
Made of CNC system, robot arm, vacuum suction cups and material rack for automatic loading
