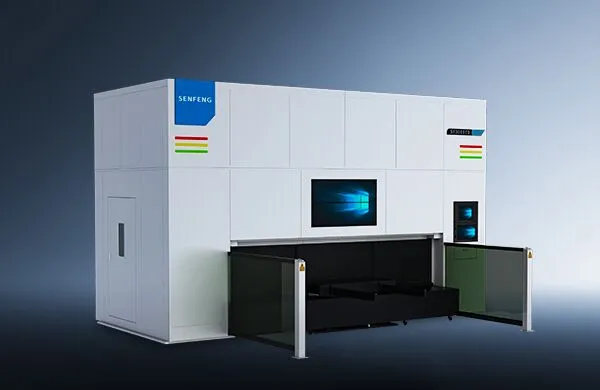

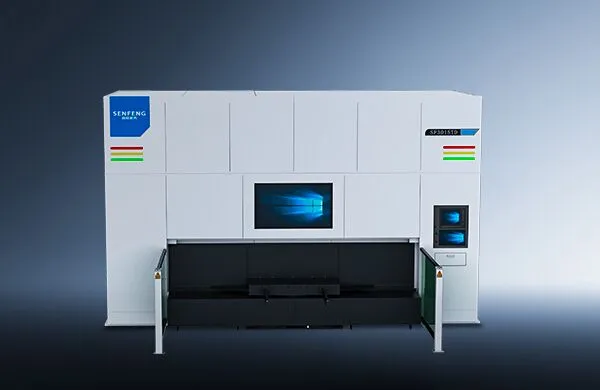

Five-axis Laser Cutting Machine For 3D Surfaces
3[kW] Laser power
N*360° Limitless rotation
±135° Swing
100 [m/min] Max no-load speed
Technical Parameters
| Main Parameters | Model |
| SF3015TD | |
| Laser Power (kW) | 3 |
| Travel Range (L*W, mm) | 1064 |
| Max Pulse Energy (mJ) | 3000*1500 |
| X/Y-axis Positioning Accuracy (mm) | ±0.1 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.05 |
| Max No-load Speed (m/min) | 100 |
| Max Acceleration (G) | 1 |
| Machine cooling | Air-cooled |
| A-axis Rotating Angle | ± 135° |
| C-axis Rotating Angle | N*360° |
| Overall Dimensions (L*W*H, mm) | 6000*2800*2755 |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
Competitive Strengths
⇲ User-friendly design
* Offer protective chamber and double-open interlocking safety door to make fully-sealed work possible and optimize smoke removal effects
* Smart light curtain can prevent staff intrusion by mistake
* Inner monitoring system makes workers stay on top of the entire workflow in real time

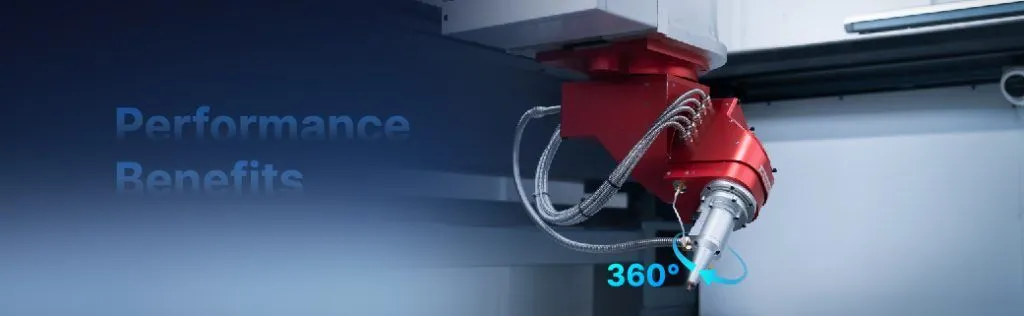

⇲ 3D laser cutting head
Small in size, light in weight and high in dynamics. It, n*360° rotation and ±135 ° swing, can rotate from one plane to the other rapidly but keep its focal spot unchanged
⇲ Dual-station rotary table
Carry workpieces to one table and then rotates for 180° flexibly to convey the finished parts outside the machine for further transfer or change, so as to make cutting non-stop

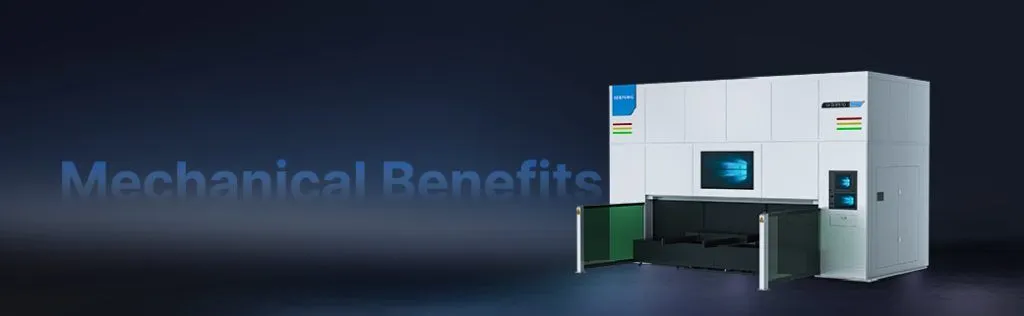

⇲ Gantry-type machine tool bed
* High rigidity and stability. During fast cutting, laser cutting head will not shake, which makes sure of cutting quality
* Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
⇲ Aviation-grade AL beam
Lighter in weight, better in stability, smaller in inertia and higher in acceleration than others
⇲ Marble base
The guide rail and gear rack base adopts marble structure, which is free from resonance, has high hardness, strong rigidity, good stability and high compressive strength
⇲ User-friendly design
* Offer protective chamber and double-open interlocking safety door to make fully-sealed work possible and optimize smoke removal effects
* Smart light curtain can prevent staff intrusion by mistake
* Inner monitoring system makes workers stay on top of the entire workflow in real time
⇲ 3D laser cutting head
Small in size, light in weight and high in dynamics. It, n*360° rotation and ±135 ° swing, can rotate from one plane to the other rapidly but keep its focal spot unchanged
⇲ Dual-station rotary table
Carry workpieces to one table and then rotates for 180° flexibly to convey the finished parts outside the machine for further transfer or change, so as to make cutting non-stop
⇲ Gantry-type machine tool bed
* High rigidity and stability. During fast cutting, laser cutting head will not shake, which makes sure of cutting quality
* Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
⇲ Aviation-grade AL beam
Lighter in weight, better in stability, smaller in inertia and higher in acceleration than others
⇲ Marble base
The guide rail and gear rack base adopts marble structure, which is free from resonance, has high hardness, strong rigidity, good stability and high compressive strength
⇲ Multifunctional demonstrator
Easy to operate but rich in functions, such as online program revision
⇲ Radial compensation for curved surface
Apply to curved surface of arbitrary shapes, need less programming
⇲ RTCP interpolation
Accept all 5-axis machine tools and keep cutting precise enough because of high interpolation precision

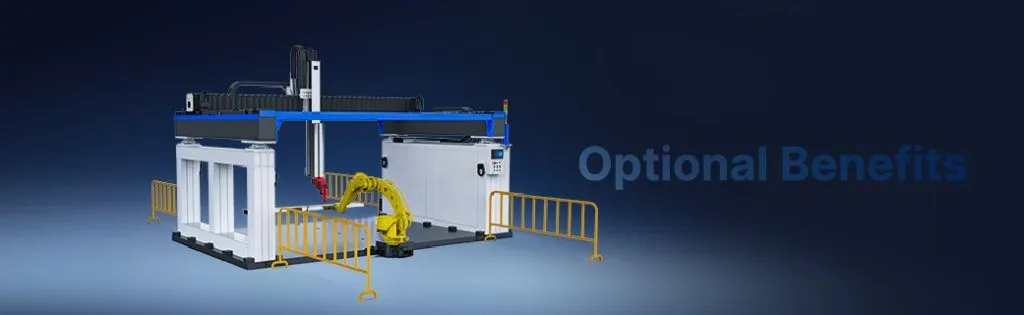

⇲ Reserve expansion interface
Users may interconnect with other processing devices to expand to fully automatic production line
