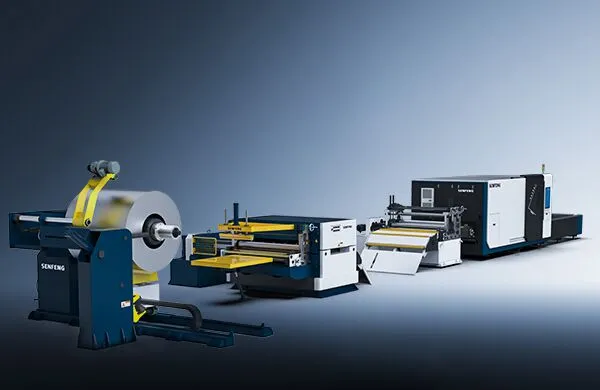

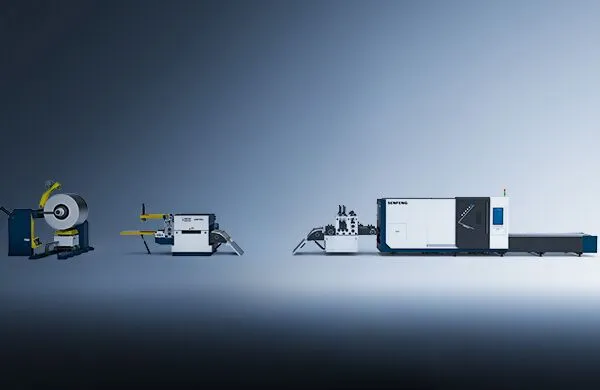

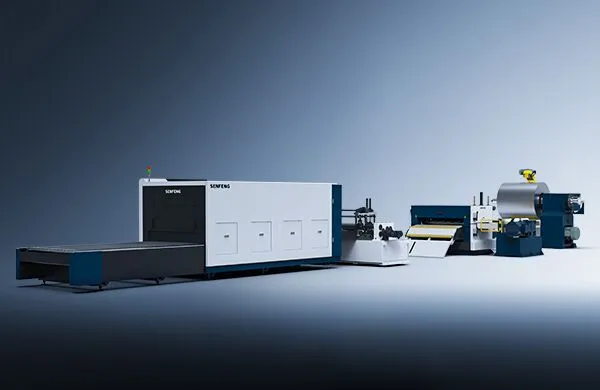

Coil Laser Cutting Machine For 0.6-3mm Aluminum
6 [kW] Laser power
3000*1500 [mm] Working area
0.6-3 [mm] Thickness of coiled sheet
10 [T] Max weight of sheet coil
Technical Parameters
| Main Parameters | Model | |
| SF1503CLH | ||
| Decoiling and Leveling Unit | Size of Sheet Coil (L*W, mm) | 3000*1500 |
| Thickness of Sheet Coil (mm) | 0.6-3 | |
| Standard inner diameter of sheet coil (mm) | Φ508 | |
| Max outer diameter of sheet coil (mm) | Φ1400 | |
| Weight of Sheet Coil (T) | 10 | |
| Max Feeding Speed (m/min) | 10 | |
| Leveling Accuracy (mm/m²) | ±1.5 | |
| Laser Cutting Machine | Laser Power (kW) | 6 |
| X/Y-axis Positioning Accuracy (mm/m) | ±0.05 | |
| X/Y-axis Repositioning Accuracy (mm) | ±0.02 | |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) | |
Competitive Strengths
⇲ User-friendly Design
* The laser cutting machine is designed as full-enclosed to prevent smoke diffusion and worker intrusion by mistake
* As for smoke exhaust system, dust will be collected by blowing and sucking

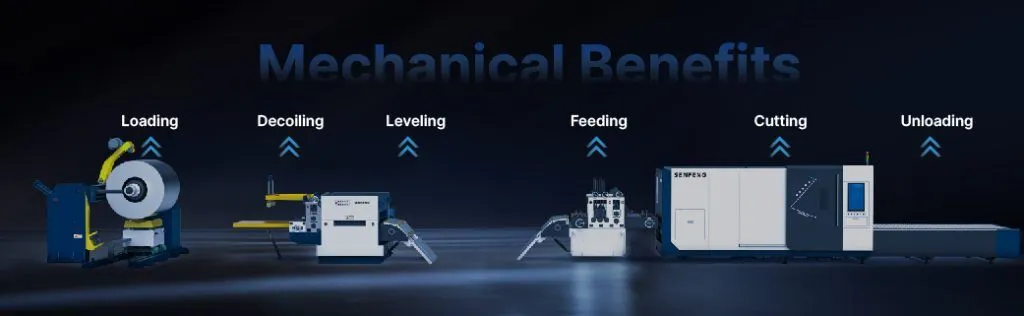

⇲ Automatic assembly line
This assembly line is fully automatic, with no manual intervention from automatic loading, decoiling, leveling, feeding, cutting to unloading device. 30% faster than before at least and realize 0 waste as much as possible
⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
⇲ Protect both man and machine
* There are more than one set of safety monitoring systems. Its whole process is clear at a glance. If abnormal, alarm will be given in time to prevent unforeseen shutdown
* Adopt protective measures to avoid misoperation and users may cut off the power at full speed in case of emergency
* Electrical system has high capacity of resisting disturbance and automatic diagnosis to find the cause of failure quickly
⇲ User-friendly Design
* The laser cutting machine is designed as full-enclosed to prevent smoke diffusion and worker intrusion by mistake
* As for smoke exhaust system, dust will be collected by blowing and sucking
⇲ Automatic assembly line
This assembly line is fully automatic, with no manual intervention from automatic loading, decoiling, leveling, feeding, cutting to unloading device. 30% faster than before at least and realize 0 waste as much as possible
⇲ High-standard machine tool
Keep machine tool indeformable and unbroken at high temperature even after long-time use because of going through 7 standard processes like high annealing and aging treatment
⇲ Protect both man and machine
* There are more than one set of safety monitoring systems. Its whole process is clear at a glance. If abnormal, alarm will be given in time to prevent unforeseen shutdown
* Adopt protective measures to avoid misoperation and users may cut off the power at full speed in case of emergency
* Electrical system has high capacity of resisting disturbance and automatic diagnosis to find the cause of failure quickly
⇲ Follow-up control
Adjust follow-up height from cutting head to sheet automatically to eliminate the impact on cutting effects of uneven sheets
⇲ Lightning-fast piercing
Pierce at top speed and enhance efficiency especially when cutting thin sheet
⇲ Recut from break point
Remember the cutting position after power outage, start recut from break point once power recover, thus avoiding material waste
⇲ Conveying flat belt receiver
Work with laser cutting machine to convey finished products to pick-up position
⇲ Film lamination
Filming after decoiling, in order to protect nonferrous metals and prevent bubble during transport
⇲ Safety grating
Protect both man and machine by warding off accidents
